Brake Pad Sensors: How BMW Tells You It's Time for a Change

Understanding Your BMW's Brake Safety System

Your BMW brake wear indicator is a sophisticated system designed to monitor brake pad thickness and alert you before serious wear occurs. Unlike older cars that used simple metal tabs, BMW employs a dual-layer approach: Condition Based Service (CBS) algorithms and physical electronic sensors.

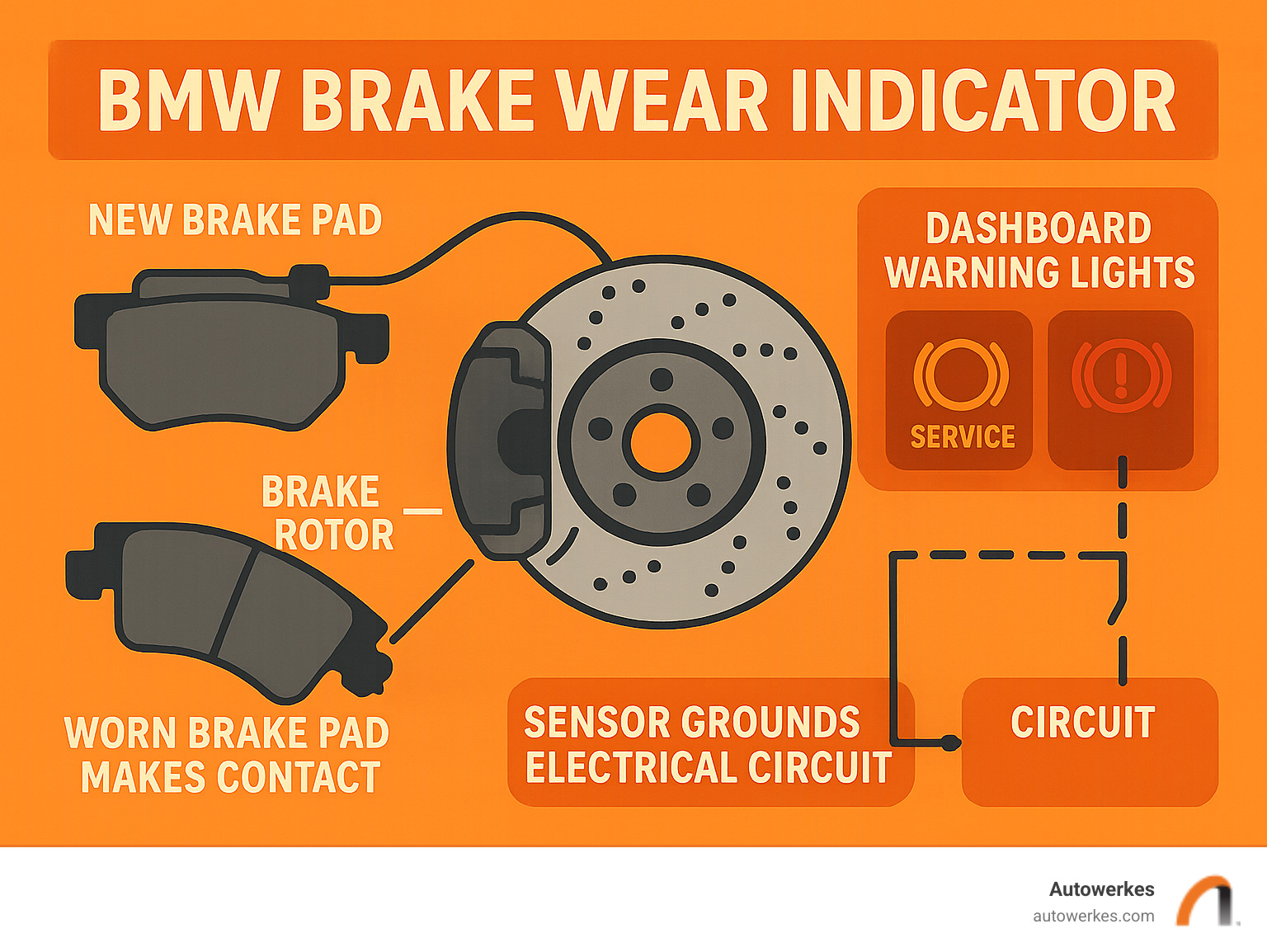

The CBS system estimates your brake pad life based on mileage and driving habits, providing early service reminders. The physical sensor offers the final, definitive warning. Strategically placed on the front-left and rear-right brake pads, this sensor contains a small wire. As your brake pads wear down, the sensor does too. Once the pad reaches its minimum thickness, the sensor's wire makes contact with the metal brake rotor. This grounds an electrical circuit, instantly triggering a warning light on your dashboard.

This alert typically gives you 1,000 to 3,000 miles of safe driving to schedule service, protecting your rotors from the expensive damage caused by metal-on-metal contact.

What Do the Dashboard Warnings Mean?

Understanding your BMW's dashboard warnings is crucial. The system uses two main types of alerts:

1. Yellow iDrive Message / Yellow Brake Light: This is a proactive service reminder from the CBS system. It's an algorithmic estimate based on your driving style, giving you plenty of time to plan for service. The mileage countdown may even pause if your driving becomes less demanding, but it's a clear sign to consider a brake inspection.

2. Red Brake Light on the Main Cluster: This is the urgent warning. A red light means the physical wear sensor has contacted the rotor, indicating your pads are at a critically low level. You have a limited window (typically 1,000-3,000 miles) before the pads wear out completely.

Ignoring a red warning leads to severe rotor damage from metal-on-metal grinding, which significantly increases repair costs and compromises your safety by reducing braking performance.

When to Replace Sensors and How to Inspect Pads

Proactive maintenance is key. So, when should you replace the BMW brake wear indicator sensors? The rule is simple: replace the sensors every time you replace your brake pads.

Even if a sensor hasn't been tripped, it should not be reused. The extreme heat and brake dust cause the sensor to become brittle and seize to the pad. Attempting to remove it will almost certainly break it. Installing a new sensor with new pads is the only way to ensure the system functions correctly.

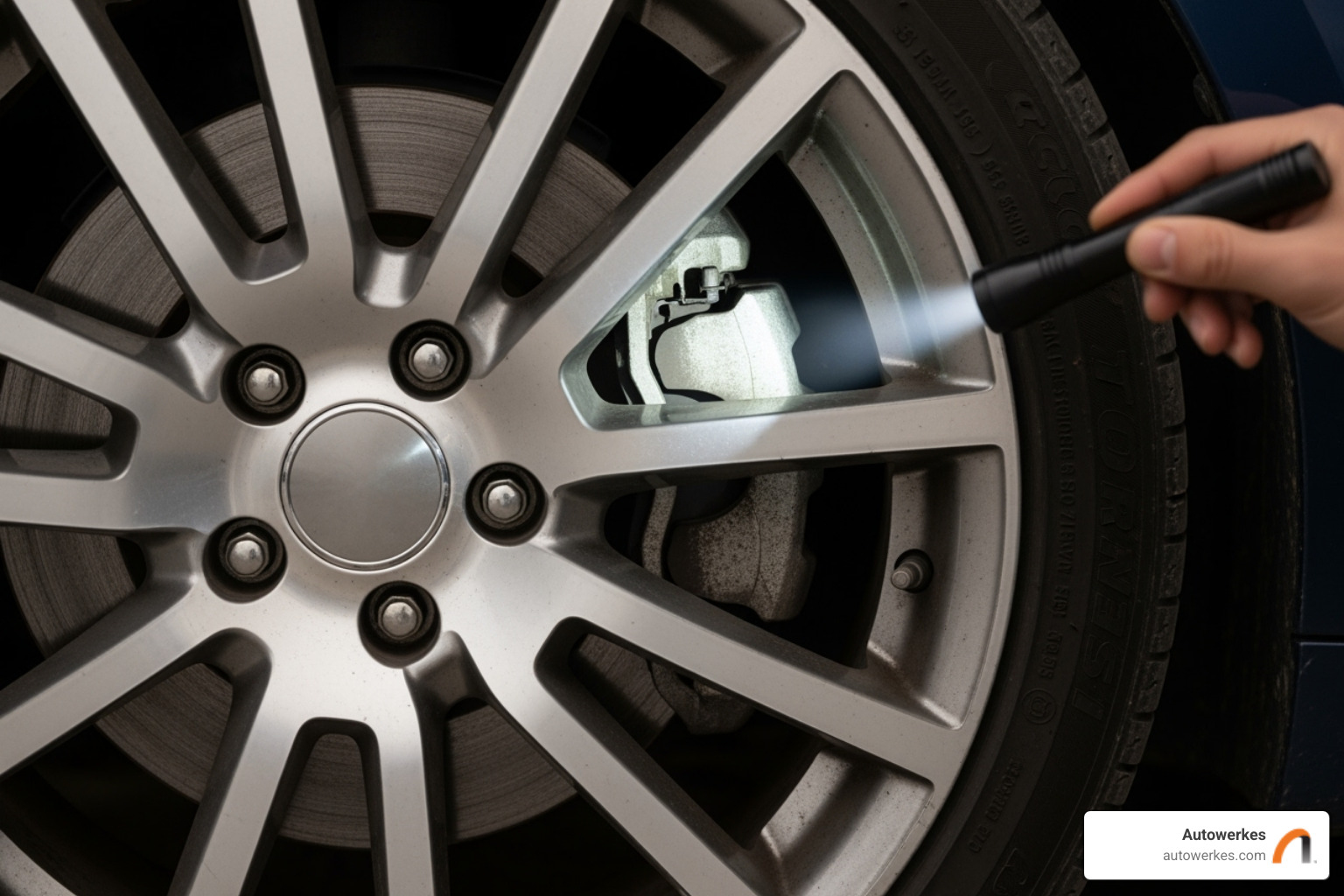

While the sensors are reliable, a visual inspection provides extra peace of mind. You can often check pad thickness through your wheel spokes:

1. Look for the caliper and the two pads pressing against the shiny metal rotor.
2. Assess the friction material thickness. New pads have about 10-12mm of material. If the material is down to 3-4mm, or looks thinner than its metal backing plate, it's time for replacement.

At Autowerkes, our comprehensive BMW Auto Repair services include a thorough inspection of pads, rotors, and sensors to ensure every component is in top condition.

All About the BMW Brake Wear Indicator System

Your BMW brake wear indicator system is a smart maintenance partner, but its accuracy depends on real-world factors. Understanding these variables helps you maximize the life of your brakes.

How Driving Style and Lifespan Affect Your BMW Brake Wear Indicator

Brake pad lifespan for a BMW typically ranges from 30,000 to 70,000 miles, a wide gap that highlights the impact of your driving habits. Frequent, hard braking in city traffic, such as on the streets of Huntington Beach, wears pads much faster than smooth highway cruising. Aggressive driving, heavy loads, and towing also significantly shorten brake life.

Even modern convenience features play a role. The use of adaptive cruise control can increase wear, as the system actively applies the brakes to maintain distance in traffic. Conversely, hybrid BMWs with brake energy regeneration often see extended pad life, as the electric motor assists in slowing the car. Your BMW's CBS system analyzes these factors, which is why its mileage-to-service estimate can change based on your driving.

Can a Faulty BMW Brake Wear Indicator Cause Other Problems?

A faulty BMW brake wear indicator won't affect critical safety systems like ABS or DSC, which use their own sensors. However, it creates significant issues of its own. The most common problem is that it prevents the CBS service reset. Even with new pads and rotors, the dashboard warning light will stay on until a new, functioning sensor is installed.

This persistent warning is distracting and undermines the system's purpose. A faulty sensor feeds incorrect data to your iDrive, meaning you can't trust the service information your car provides. This uncertainty can lead to replacing parts too early or, worse, too late, risking rotor damage.

Common Questions About Sensor Replacement

When servicing your brakes, a few key questions about the BMW brake wear indicator often arise.

• Can sensors be reused? No. They are one-time-use components. Heat and dust cause them to seize to the old pads, and they will likely break upon removal. Even if untripped, they should always be replaced.
• How is the warning light reset? After a sensor is tripped, replacing the pads and sensor is not enough. The CBS system requires a professional reset using specialized diagnostic tools to clear the light and start a new monitoring cycle.
• Are front and rear sensors the same? No, they are not interchangeable. The front-left and rear-right sensors have unique part numbers and wiring lengths for their specific locations.
• Does sensor quality matter? Absolutely. Using genuine BMW or high-quality OEM equivalent sensors is crucial for reliability. Cheaper aftermarket parts can fail or provide inaccurate readings.

For these reasons, professional service at Autowerkes is recommended to ensure the correct parts are used and the system is properly reset.

Expert Brake Service for Your BMW

Understanding your BMW brake wear indicator is key to safety and avoiding expensive repairs. Remember the essentials: a yellow light is a heads-up, while a red light means it's time to act. Always replace your wear sensors with your brake pads, as these one-time-use parts are crucial for the system to work correctly.

Your driving style in and around Huntington Beach directly impacts brake life, but with proper maintenance, you can ensure your BMW's braking system performs as intended. Don't let a dashboard warning become a costly surprise. Our expert technicians have the specialized tools to accurately diagnose issues, perform repairs, and correctly reset your CBS system.

We understand the intricate relationship between your BMW brake wear indicator and your car's overall performance. Trust the professionals at Autowerkes to keep your BMW safe and reliable.
