Don't Get Stuck in Gear: How to Change Your R129's ATF

Why Your Classic SL Needs Fresh Transmission Fluid

An r129 transmission fluid change is essential maintenance that can prevent costly transmission failure and keep your classic Mercedes-Benz SL-Class shifting smoothly.

Quick Answer: R129 Transmission Fluid Change Overview

• Fluid Type: Use Mercedes-Benz approved ATF (MB 236.10 for 4-speed 722.3, MB 236.12/236.14 for 5-speed 722.6)
• Service Interval: Every 40,000-60,000 miles or 6 years
• Fluid Capacity: 3L for pan service, 7-8L for complete drain
• Key Parts: Filter, pan gasket, crush washers, ATF
• Estimated Time: 2-3 hours for DIY
• Professional Service Recommended: Especially for vehicles over 100,000 miles with unknown service history

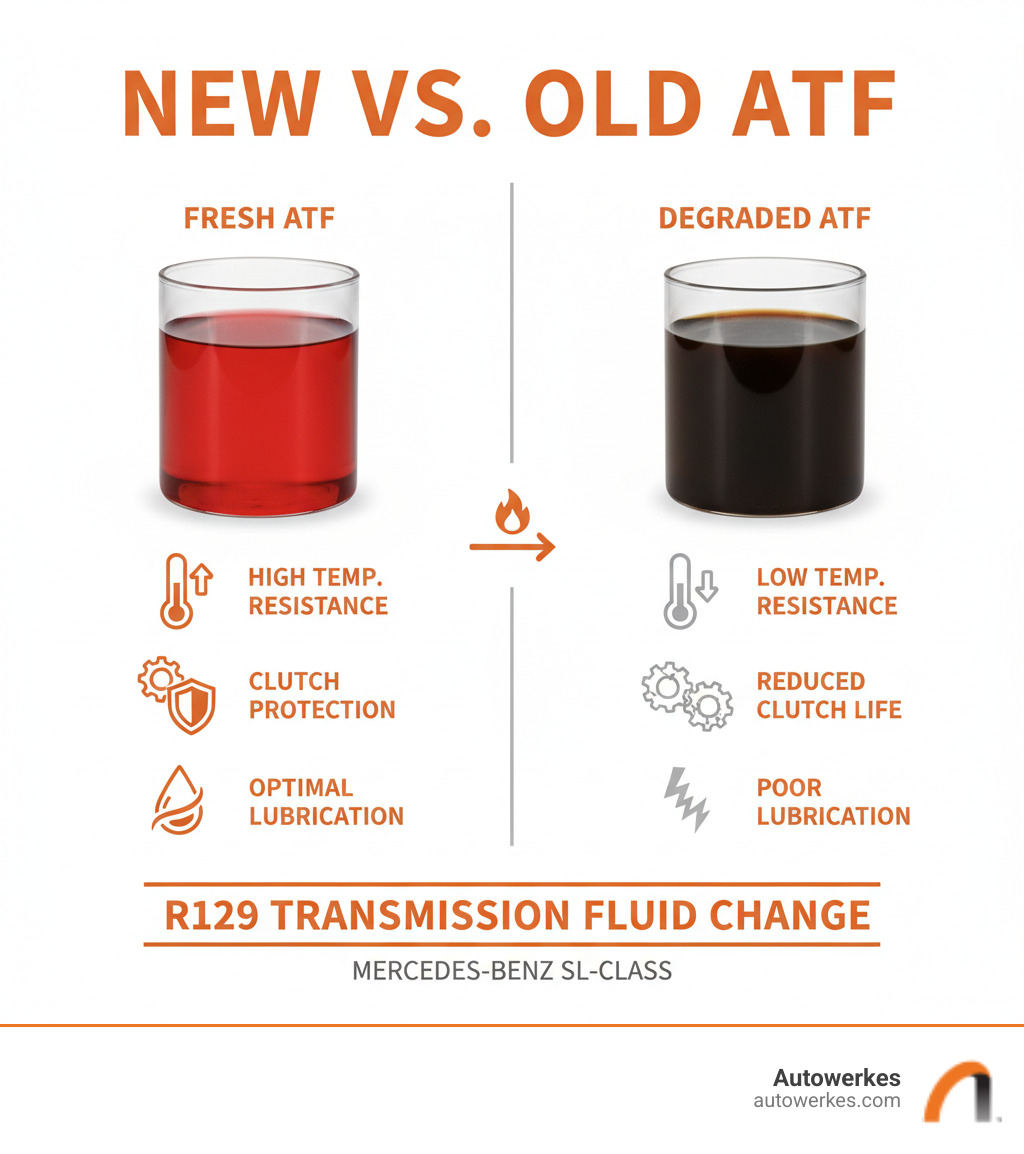

Your R129's automatic transmission is a complex component where heat is the primary enemy. It breaks down the fluid, leading to wear and eventual failure. Despite Mercedes once marketing some transmissions as "sealed for life," this was a marketing claim, not a long-term maintenance plan. Experts and even Mercedes' revised recommendations agree that regular fluid changes are crucial for both the 4-speed hydraulic (722.3) and 5-speed electronic (722.6) transmissions found in the R129.

High-mileage vehicles (100,000+ miles) with unknown service history require special care. Fresh fluid's detergents can dislodge built-up sludge, a phenomenon known as "viscosity shock," which can cause issues in neglected transmissions. This is why consulting a specialist like Autowerkes is highly recommended for older, high-mileage SLs.

Your Complete Guide to the R129 Transmission Fluid Change

This guide covers everything you need to know about an r129 transmission fluid change, whether you're a DIY enthusiast or want to understand the process before visiting us at Autowerkes.

Gathering Your Supplies: The Right Fluid, Parts, and Tools

First, identify your transmission. R129s before 1996 generally have the robust 4-speed hydraulic (722.3), while later models use the more sophisticated 5-speed electronic (722.6).

Choosing the Right Fluid & Parts

Using the correct Automatic Transmission Fluid (ATF) is critical to prevent damage.

• 722.3 (4-speed): Requires fluid meeting MB 236.10 spec. The original was Dexron II/III. Avoid Dexron IV/VI, as its lower viscosity can harm older seals.
• 722.6 (5-speed): Needs a specific synthetic fluid meeting MB 236.12 or MB 236.14 spec. Do not use the older fluid in this transmission.

For a complete service, you will need:

• A new transmission filter and pan gasket.
• Drain plug crush washers for the pan and torque converter.
• For 722.6 transmissions, consider replacing the pilot bushing connector, a common leak point.

Essential Tools

• Jack and jack stands for safety.
• Socket set, wrenches, and Torx bits (especially T30).
• A 5mm Allen head may be needed for some drain plugs.
• A fluid pump for easier refilling.
• A Mercedes dipstick tool is essential for 722.6 models, which lack a permanent dipstick.
• A large drain pan, torque wrench, and clean shop towels.

The High-Mileage Question: Understanding 'Viscosity Shock'

If your SL has over 100,000 miles with no service records, you might be concerned about "viscosity shock." In a neglected transmission, old, sludgy fluid can accumulate debris that ironically helps worn parts grip. Fresh, detergent-rich fluid can clean away this sludge, exposing underlying wear and potentially causing slipping or harsh shifts. The new fluid isn't the problem; it's revealing pre-existing damage.

For these high-mileage vehicles, a gentler approach is often best. At Autowerkes, we may recommend a pan-only fluid change, which replaces about 3-4 liters, or a series of gradual fluid replacements over several thousand miles. This introduces new fluid slowly, avoiding the shock of a complete flush.

An expert assessment is key. Our team at Autowerkes can evaluate your transmission's condition and recommend the safest service to keep your classic SL running smoothly.

The Step-by-Step Procedure for an R129 Transmission Fluid Change

Here's a condensed overview of the process.

1. Safety and Preparation: Work on a level surface with the car secured on jack stands. Let the transmission cool completely. Wear safety glasses and gloves.

2. Drain the Fluid: Place a drain pan under the transmission. Remove the pan's drain plug (T30 Torx or 5mm Allen) and let the fluid drain. Measure the drained amount as a refill reference (usually 3-4 liters). If your model (often the 722.3) has a torque converter drain plug, reinstall the pan plug, rotate the engine to access the converter plug through the bell housing, and drain the remaining fluid (another ~4 liters). Reinstall the converter plug with a new washer to 14nm.

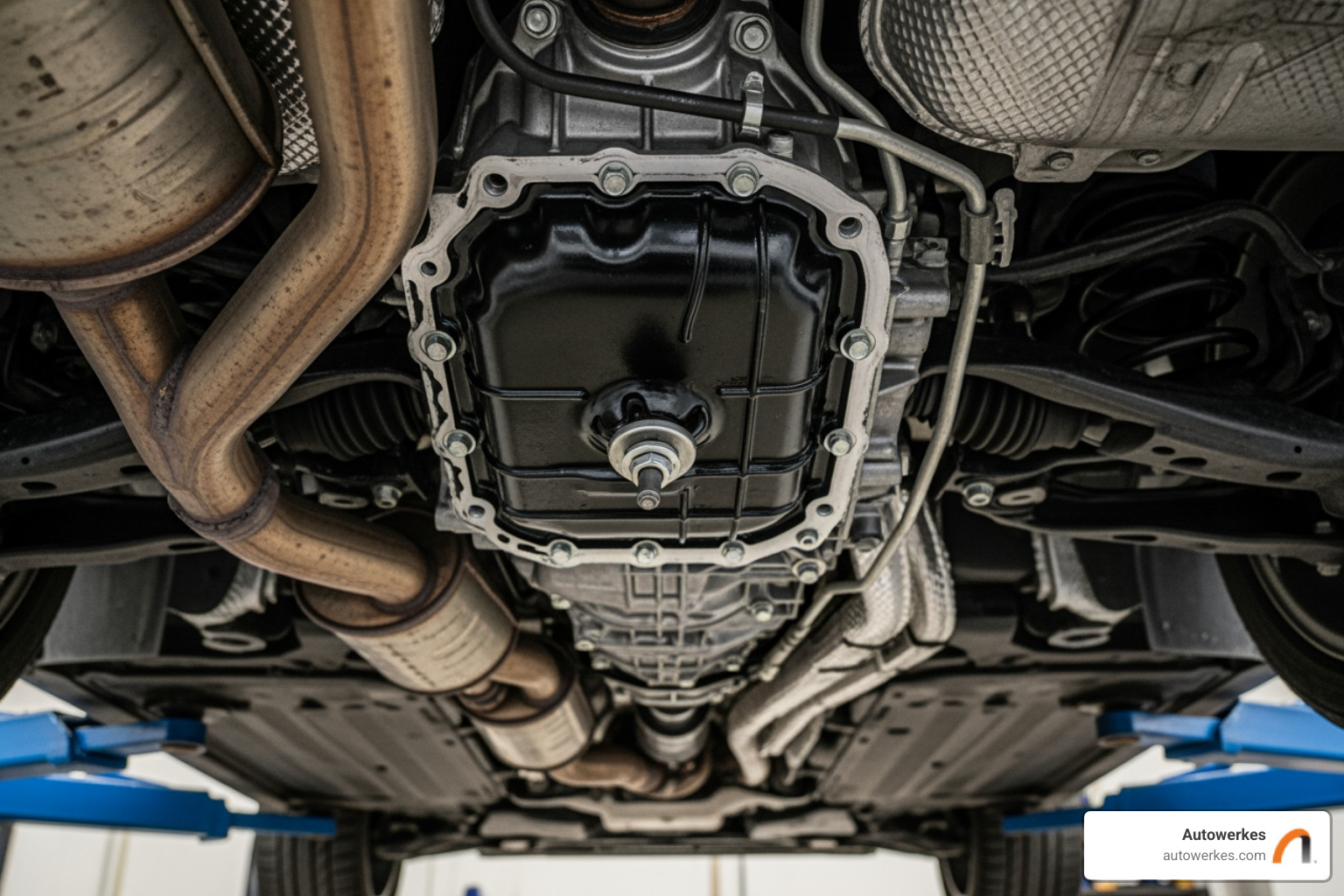

3. Drop the Pan & Replace Filter: Remove the pan bolts (T30 or 13mm) and lower the pan. Clean the pan and its magnet thoroughly. Excessive metal debris is a sign of internal wear. Remove the old filter and install the new one.

4. Reinstall the Pan: Clean the mating surfaces on the pan and transmission casing. Place the new gasket on the pan, lift it into position, and hand-start all bolts. Use a torque wrench to tighten the bolts to 8nm in a star pattern to prevent leaks.

5. Refill with Fresh Fluid: Using a funnel, pour the correct new ATF into the filler tube. Start by adding the amount you drained. A full drain will require about 5 liters initially, with more added during the level check.

Finalizing the Service: How to Check the Fluid Level Correctly

Getting the fluid level right is critical. Too little fluid causes overheating and wear; too much causes foaming, poor lubrication, and leaks.

1. Warm-Up and Circulate: Start the engine. With your foot on the brake, slowly shift through all gears (P-R-N-D), pausing for 10-15 seconds in each to circulate the new fluid. Let the transmission warm up to its operating temperature of 80°C (176°F).

2. Check the Level: With the engine running and in Park, check the level.

• 4-speed (722.3): Use the permanent dipstick. The level should be between the min/max marks for the hot range.
• 5-speed (722.6): Use the special dipstick tool, inserting it until it bottoms out. The level should be between the 80°C min/max marks.

3. Adjust as Needed: Add fluid in small increments (0.5L at a time) if low. If overfilled, you must drain some from the pan. Recheck until the level is perfect.

DIY vs. Professional Service: Making the Right Choice for Your SL

Deciding whether to perform an r129 transmission fluid change yourself or trust it to a professional is a key decision for any classic car owner.

Assessing a DIY R129 Transmission Fluid Change: Pros and Cons

There's a certain satisfaction in maintaining your own classic Mercedes, and the cost savings on labor are a clear benefit. You'll also gain a deeper understanding of your R129's mechanics.

However, the risks are significant. This is a messy, time-consuming job that requires specialized tools like the Mercedes dipstick tool. The biggest dangers lie in simple mistakes with severe consequences:

• Using incorrect fluid: Can quickly destroy a transmission.
• Improper fluid level: Overfilling or underfilling leads to overheating, poor lubrication, and eventual failure.
• Misjudging high-mileage risks: An aggressive fluid change on a neglected transmission can trigger "viscosity shock," causing the very problems you're trying to prevent.

For a component this critical and expensive, the potential DIY pitfalls often outweigh the rewards. For expert guidance, consider our specialized care at Autowerkes. Learn more about our comprehensive Mercedes-Benz Auto Repair services.
