XT5 Transmission Fluid: The Ultimate DIY Guide

Why Your XT5's Transmission Fluid Matters

A Cadillac XT5 transmission fluid change is a vital maintenance task for your luxury SUV's complex 8-speed automatic transmission. Staying on top of this service can prevent rough shifts and save you from costly repairs down the line.

Quick Answer: How to Change Your Cadillac XT5 Transmission Fluid

1. Use the correct fluid: Aisin AW-1 specification is required.
2. Drain and refill: Remove the two-part drain plug and replace it with new plugs.
3. Add 4-8 quarts: Fill until fluid drains from the overflow tube.
4. Check level hot: With the engine running, check the level at 95-113°F after cycling gears.
5. Service interval: Every 90,000 miles or when symptoms appear.

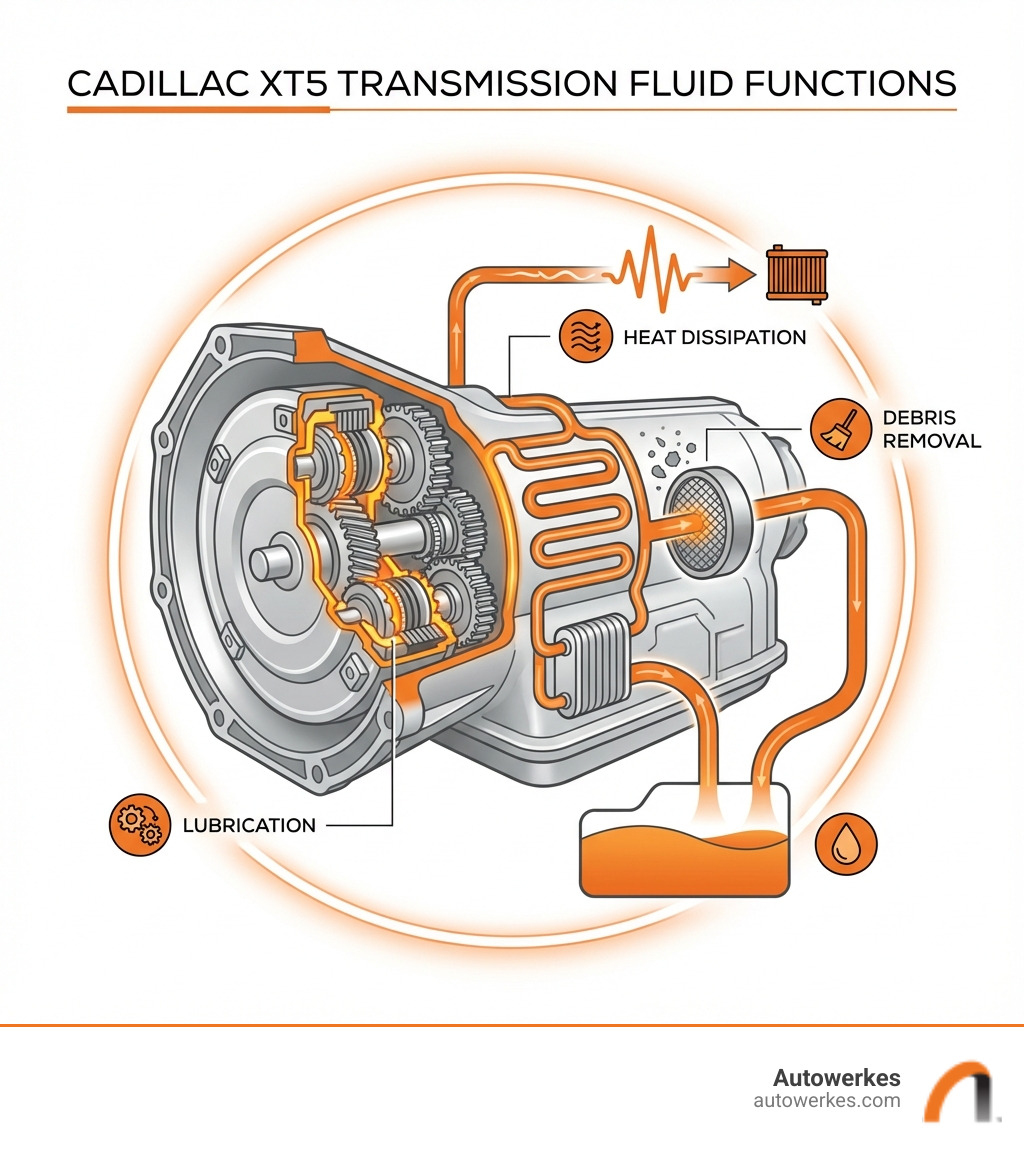

Transmission fluid is essential for lubricating, cooling, and cleaning your transmission's internal components. When it degrades, you may experience clunky shifting, hesitation, or a burning smell—all warning signs that your transmission needs attention.

While a drain and refill can be a DIY project, the XT5 has specific procedures and one-time-use plugs that differ from older cars. At Autowerkes, we've serviced countless Cadillac transmissions and understand the nuances of this job. We're here to guide you, whether you do it yourself or prefer our expert service.

The Complete Cadillac XT5 Transmission Fluid Change Guide

1. Gathering Your Tools and the Right Fluid

Proper preparation is key for a successful Cadillac XT5 transmission fluid change. Using the right tools and, most importantly, the correct fluid will prevent a simple DIY project from turning into a costly repair.

Your Cadillac XT5 (especially 2017-2019 models with the AWF8F45 8-speed transmission) requires a specific fluid: Aisin AW-1 specification. Using a generic fluid like standard Dexron can cause severe damage. While AC Delco AW1 is the factory fluid, other brands meeting the AW-1 spec are available. Always check your owner's manual or contact our team at Autowerkes to ensure you're using the best fluid for your XT5.

For the job, you'll need:

• Vehicle Lift or Jack Stands: To safely and securely level the vehicle.
• Drain Pan: A large capacity pan is a must.
• Torx and Allen Sockets: For the specialized drain and fill plugs.
• Ratchet and Extensions: To reach the plugs.
• Fluid Pump: Essential for refilling the transmission.
• New One-Time-Use Plugs and O-rings: The factory plugs are single-use and must be replaced to prevent leaks.
• Torque Wrench: For precise tightening.
• Infrared Thermometer or Scan Tool: Non-negotiable for an accurate temperature reading during the level check.
• Clean Rags and Gloves.

2. The Step-by-Step Drain and Refill Process

With your tools and fluid ready, it's time to perform the Cadillac XT5 transmission fluid change. This process requires precision and attention to detail.

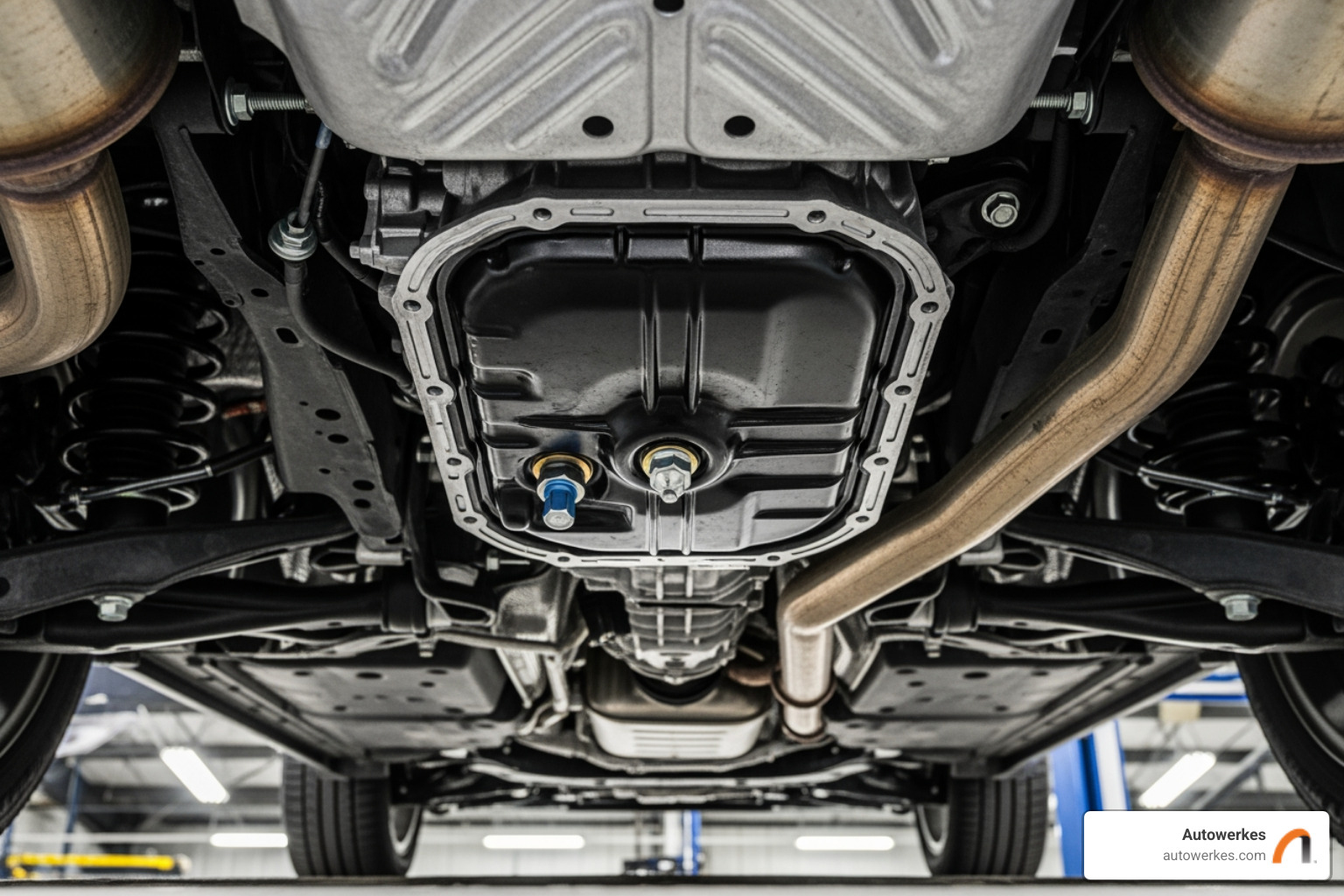

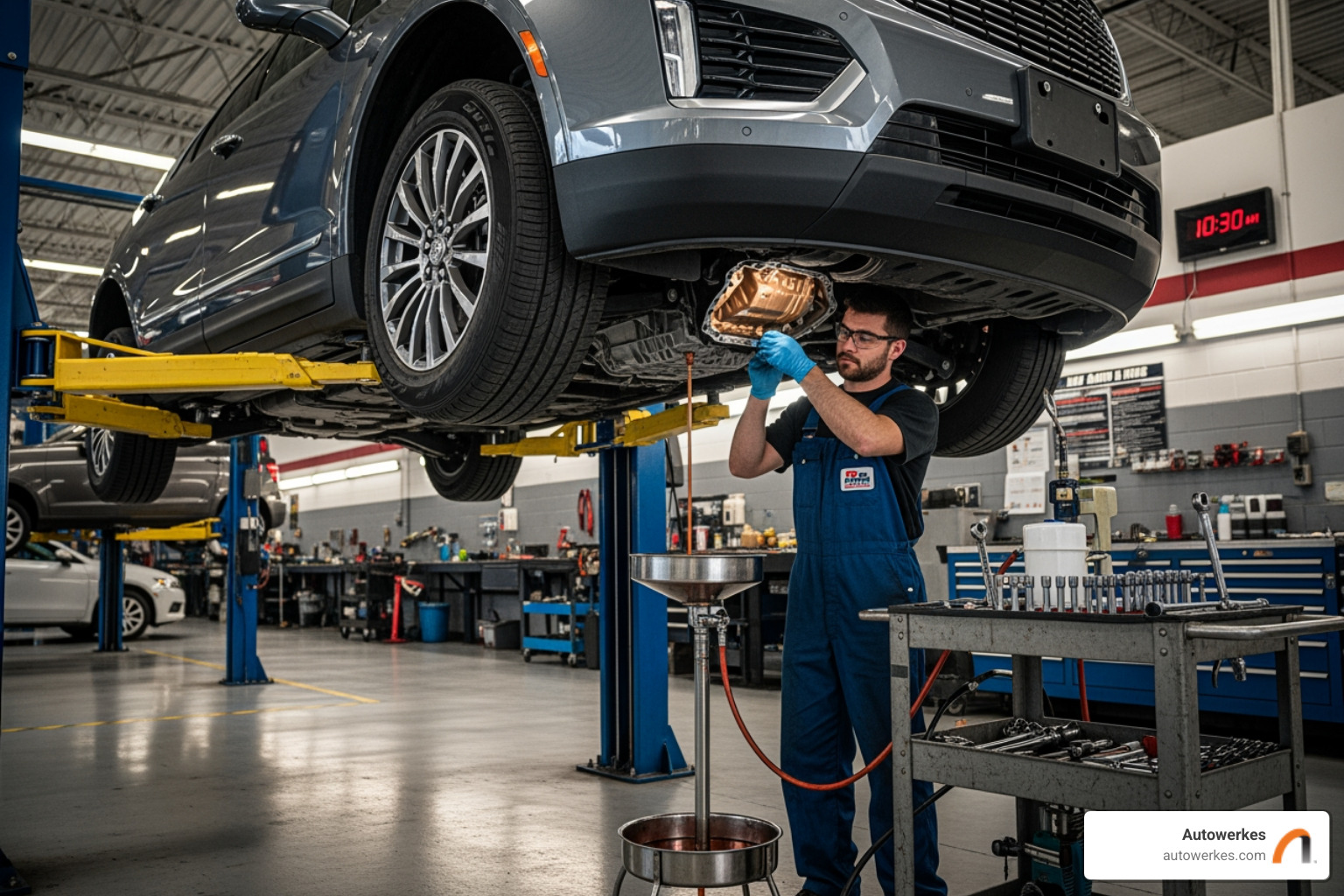

Step 1: Prepare and DrainPark on a level surface and safely raise the vehicle on a lift or jack stands. For best results, the transmission should be warm. Place a large drain pan underneath the transmission. The drain plug is a two-part assembly; remove the small inner bolt first, then the larger outer plug to drain the old fluid completely. Inspect the old fluid for metal shavings or a burnt smell, which can indicate deeper problems.

Step 2: Initial RefillReinstall the large outer drain plug. Locate the fill plug on the top or side of the transmission and remove it. Using a fluid pump, add new AW-1 specification fluid into the fill hole until it begins to trickle out of the drain hole's overflow tube. Once it does, reinstall the small inner drain plug and tighten it to the manufacturer's specification.

3. Checking the Fluid Level: The Critical Final Step for your Cadillac XT5 Transmission Fluid Change

This final step is vital for your transmission's health, as the XT5 uses a temperature-sensitive overflow method instead of a dipstick.

Step 3: Warm Up and CirculateLower the vehicle to level ground and start the engine. With your foot on the brake, slowly cycle the shifter through all gears (P, R, N, D), pausing for a few seconds in each. This circulates the new fluid throughout the transmission.

Step 4: Perform the Final Level Check

1. Achieve Correct Temperature: The fluid temperature must be between 95-113°F (35-45°C). Use an infrared thermometer on the pan or a scan tool for an accurate reading. This is the most critical part of the process.
2. Check the Overflow: With the engine running, the transmission in PARK, and the fluid at the correct temperature, get back under the vehicle. Remove the small inner drain plug.
3. Confirm the Level:
   • A steady trickle of fluid means the level is correct.
   • If no fluid comes out, it's underfilled. Add more fluid through the fill plug until it trickles out.
   • If fluid gushes out, it's overfilled. Let it drain to a trickle.
4. Finalize: Once a steady trickle is achieved, reinstall a new small inner drain plug and tighten it to the specified torque. Use new plugs for both drain and fill locations to ensure a proper seal. Incorrect fluid levels, either too high or too low, can cause severe transmission damage.

4. Transmission Flush vs. Fluid Change: What's the Difference?

When servicing your transmission, you'll hear about a "fluid change" and a "fluid flush." Understanding the difference is key to making the right choice for your Cadillac XT5 transmission fluid change.

A transmission fluid change (or drain and refill) is the process we've described. It involves draining the pan, which replaces about half the fluid in the system. This method is beneficial because it allows for inspection of the old fluid for signs of trouble and is generally considered safer, especially for higher-mileage vehicles.

A transmission flush uses a machine to push new fluid through the entire system, replacing nearly 100% of the old fluid. However, this process carries risks. The pressure can dislodge debris that may then clog narrow passages, potentially causing new problems or even transmission failure. For this reason, many manufacturers and experts, including our team at Autowerkes, recommend the gentler drain-and-refill method.

While the XT5's 90,000-mile service schedule mentions flushing, it's important to differentiate between a gentle fluid exchange and an aggressive high-pressure flush. At Autowerkes, we prioritize methods that safely exchange the fluid without risking damage. For expert advice custom to your XT5's mileage and condition, consult the Autowerkes team.

5. Costs and Service Intervals for a Cadillac XT5 Transmission Fluid Change

Proactive maintenance is always cheaper than reactive repairs. The recommended service interval for a Cadillac XT5 transmission fluid change is every 90,000 miles under normal driving conditions. If you frequently tow, drive in hot climates like our California summers, or do a lot of stop-and-go city driving, an earlier service (around 30,000 to 50,000 miles) is a wise investment.

While a DIY fluid change saves on labor costs, it requires specialized tools and meticulous attention to detail. An error in the process can lead to costly damage.

Opting for professional service at a shop like Autowerkes provides peace of mind. Our certified technicians have the expertise and specialized equipment to do the job right, using manufacturer-recommended fluids and parts. This ensures your warranty remains intact and your luxury vehicle receives the precise care it needs. For a personalized quote for your Cadillac XT5 transmission fluid change, contact Autowerkes for transmission service information. We serve the Huntington Beach, Newport Beach, and greater Southern California area.

6. Risks of Neglect and Signs You Need a Service

Neglecting your Cadillac XT5 transmission fluid change is a gamble that can lead to expensive problems. Degraded fluid loses its ability to lubricate, cool, and clean, leading to premature wear, overheating, and sludge buildup. This can result in complete transmission failure, a repair costing thousands.

Watch for these common symptoms that indicate your transmission needs service:

• Transmission Slipping: The engine revs, but the car doesn't accelerate properly.
• Rough or Harsh Shifting: Shifts feel clunky, jerky, or abrupt.
• Delayed Engagement: A noticeable pause when shifting from Park into Drive or Reverse.
• Unusual Noises: Whining, clunking, or humming sounds from the transmission.
• Burning Smell: A distinct burnt toast odor indicates overheated fluid.
• Warning Lights: A check engine or transmission warning light is a clear signal to seek service.

Cadillac has also issued Technical Service Bulletins (TSBs) like TSB 17-NA-243 for shift harshness. While a software update may be part of the fix, fresh fluid at the correct level is a foundational part of the solution. If you notice any of these signs, don't delay. Have your XT5 inspected by our qualified technicians promptly.

Professional Service vs. DIY: When to Call the Experts

Performing a Cadillac XT5 transmission fluid change yourself can be rewarding, but it's important to recognize its complexities. The process requires special tools, one-time-use parts, and a precise, temperature-sensitive fluid level check that leaves no room for error. Safely lifting the vehicle and properly disposing of used transmission fluid, which is a hazardous waste, are other important considerations.

If you lack the experience, tools, or confidence to perform the job to factory specifications, it's best to call the experts. An error can easily lead to damage far more costly than the price of a professional service.

At Autowerkes, our certified technicians specialize in luxury vehicles like your Cadillac XT5. We use state-of-the-art equipment and manufacturer-approved fluids to ensure the service is done right, protecting your investment and your warranty. For complex diagnostics or if you simply want the peace of mind that comes with expert service, we are here to help.

Whether you're in Huntington Beach, Newport Beach, Fountain Valley, Palos Verdes, Manhattan Beach, Los Angeles, Irvine, Mission Viejo, Laguna Beach, or San Diego, our team is ready to provide top-tier service. Give your Cadillac the care it deserves by scheduling your service with us today.
