How to Replace Your BMW X3 Battery (2018-2019 Models)
.svg)
Understanding Your 2018 BMW X3 Battery Replacement Needs
2018 bmw x3 battery replacement is a maintenance task every X3 owner will eventually face. Here's what you need to know right away:
Quick Overview:
- Battery Location: Trunk compartment beneath floor panel (not under the hood)
- Expected Lifespan: 3-5 years, with BMW recommending replacement every 4 years
- Battery Type: 80Ah AGM (Absorbent Glass Mat) battery required
- Average Cost: $651-$702 total ($372 parts, $93-$136 labor)
- Key Challenge: Battery registration required after replacement for proper charging
- DIY Difficulty: Moderate - physically manageable but requires electronic registration
If your X3 is cranking slowly, making clicking sounds, or has dimming lights, your battery is likely failing. Unlike many cars, the 2018 BMW X3 battery is in the trunk, which protects it from engine heat but makes it easy to forget. While the physical swap is manageable, the critical step is battery registration. Modern BMWs require this electronic step to tell the car's computer a new battery is installed. Without it, the new battery won't charge correctly and will fail prematurely, a common pitfall for DIY replacements. Understanding this process is key, whether you do it yourself or trust a professional service center like Autowerkes.
Step-by-Step Guide to Your 2018 BMW X3 Battery Replacement
Replacing the battery in your 2018 BMW X3 is different because it's located in the trunk, not under the hood. BMW placed it there for better weight distribution and to protect it from engine heat, extending its life. Before starting, prioritize safety. Car batteries contain corrosive acid and can release explosive gas. Always wear safety glasses and insulated gloves, and ensure the car is off with the parking brake engaged.
The most crucial part for modern BMWs is battery registration. Your X3's Intelligent Battery Sensor (IBS) adjusts charging based on the battery's age and condition. When you install a new battery, the car's computer must be told. Skipping this step will cause the system to charge your new battery like it's the old one, leading to premature failure. If you're curious about how we handle complex electrical systems like this at Autowerkes, you can learn more about our electrical repair services on our dedicated page.
Key Considerations for Your 2018 BMW X3 Battery Replacement

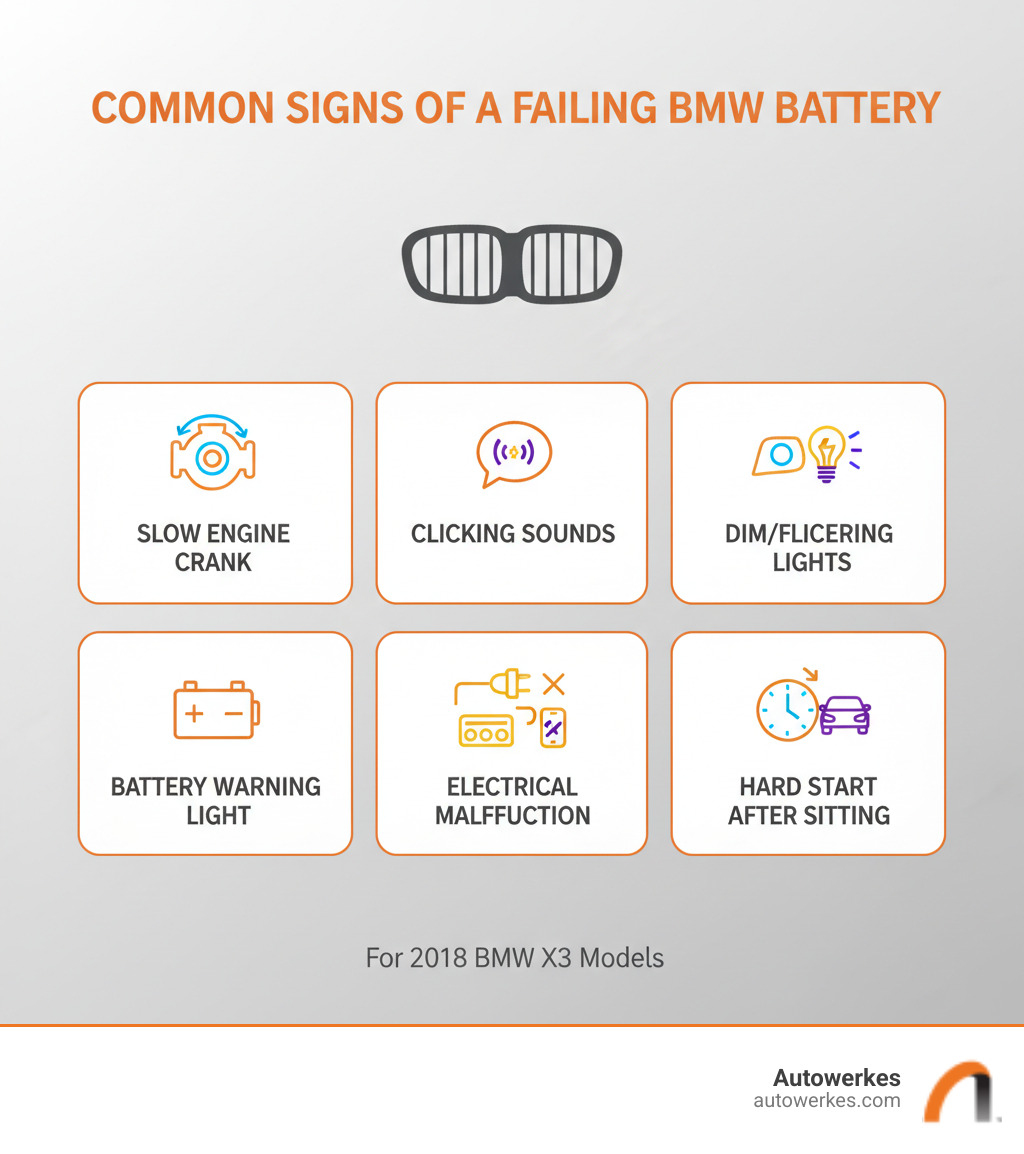

Your X3 will warn you when its battery is failing. Common signs include a slow engine crank, a rapid clicking noise when starting, dimmer headlights, or a battery warning light on the dash. You might also see corrosion on the battery terminals. BMW recommends replacement every 4 years, though most last 3-5 years depending on climate and driving habits.
Your 2018 X3 must use an 80Ah AGM (Absorbent Glass Mat) battery. These are designed to handle the high electrical demands of modern features like the automatic start-stop technology and sophisticated electronics. A standard battery cannot keep up and will fail quickly, potentially causing other electrical issues. You can download BMW owners manuals directly from BMW's official website for more details.
Tools and Preparation
Gather your tools before you begin. You'll need a 10mm socket for the terminals and a 13mm socket for the hold-down bracket, along with a ratchet and extension. Safety glasses and insulated gloves are mandatory. A terminal cleaning brush is also essential. For convenience, a memory saver can be plugged into the OBD-II port to retain your car's electronic settings like radio presets.
Park on a level surface, engage the parking brake, and turn off the engine. Wait at least 15 minutes before disconnecting the battery to allow all electronic modules to power down safely. Open the trunk and connect your memory saver if you're using one.
Locating and Removing the Old Battery

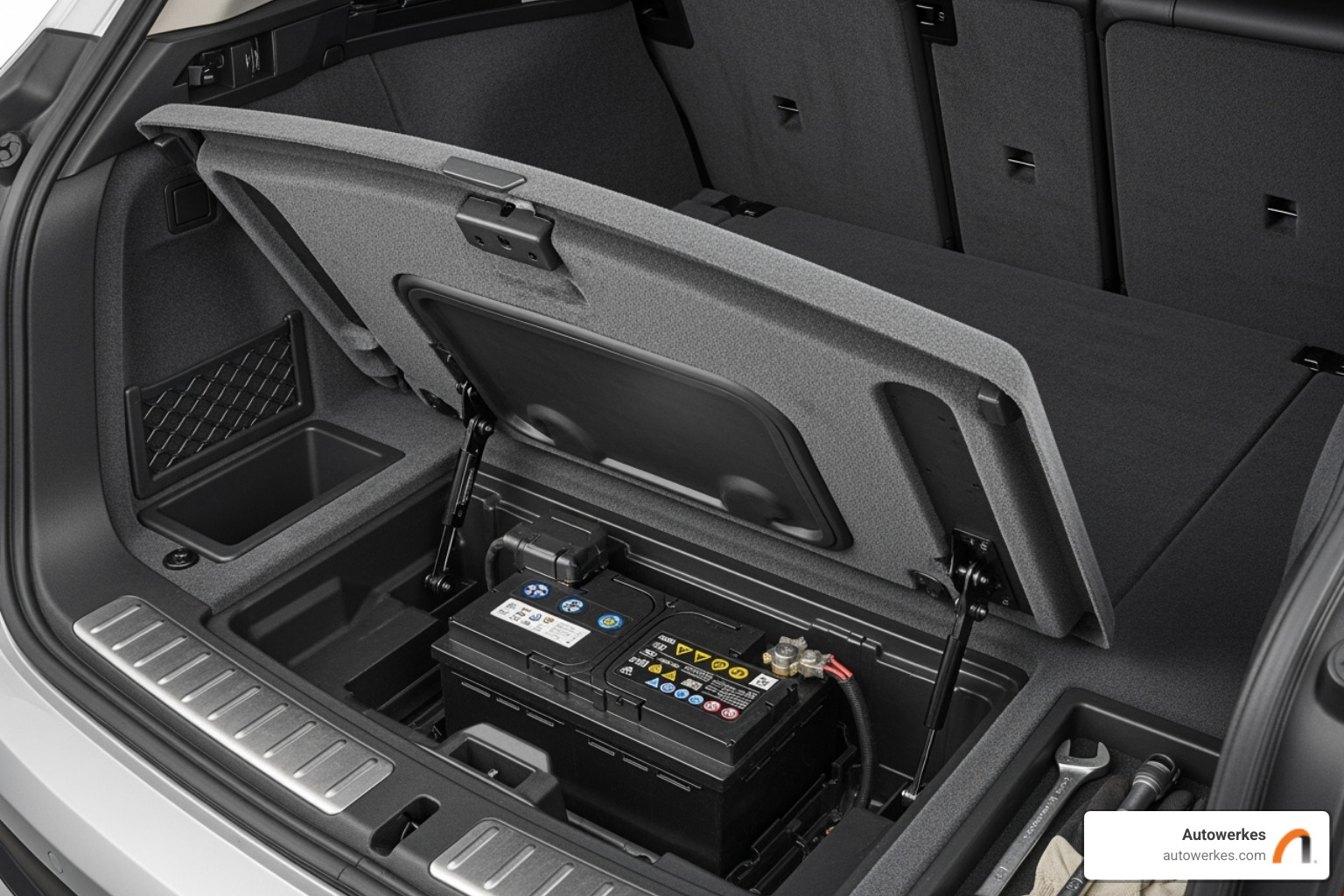

In the trunk, lift the floor covering and remove any trays to expose the battery. With your safety gear on, follow these steps:
- Disconnect the Negative Terminal First: Use a 10mm socket to loosen the clamp on the black (-) cable. Tuck it away so it cannot touch any metal.
- Disconnect the Positive Terminal: Loosen the clamp on the red (+) cable and move it aside.
- Remove the Hold-Down Bracket: Use a 13mm socket with an extension to remove the bolt securing the battery at its base.
- Detach the Vent Tube: Gently pull the small plastic vent tube from the side of the battery.
- Lift Out the Old Battery: These batteries are heavy (40-60 lbs). Use the handle and lift with your legs to carefully remove it from the compartment.
Installing the New Battery and Reconnecting
Before installing the new battery, use a wire brush and a baking soda/water solution to clean the battery tray and cable terminals of any corrosion.
- Place the New Battery: Carefully lower the new 80Ah AGM battery into the compartment, ensuring the terminals are correctly oriented.
- Secure the Hold-Down Bracket: Reinstall the bracket and tighten it with the 13mm socket so the battery cannot move.
- Reconnect the Vent Tube: Attach the vent tube to the new battery.
- Connect the Positive Terminal First: Reconnect the red (+) cable to the positive post and tighten the 10mm nut.
- Connect the Negative Terminal: Reconnect the black (-) cable to the negative post and tighten it securely.
Once everything is connected, replace the trunk floor panels. Your X3 should start, but remember the crucial registration step is still needed for long-term health.
After the Replacement: What to Expect and When to Call a Pro
With the new battery installed, your X3's electronics need to adjust. It's normal for a few things to seem "off" initially as the control modules sync with the new power source. If you encounter persistent warning lights or want professional verification, the team at Autowerkes is ready to help with our advanced diagnostic tools.
For a deeper look at how we approach complex vehicle diagnostics, check out our insights on Beyond the Surface: A Look at AutoWerkes' Advanced Diagnostic Procedures.
Post-Replacement Issues: Resets and Relearning
The most critical post-replacement step is battery registration. Your car's Intelligent Battery Sensor (IBS) must be told a new battery is installed to ensure proper charging and prevent premature failure. This requires a special diagnostic tool. You will also likely need to perform some simple resets:
- Clock and Radio: Manually reset the time and your saved radio stations.
- Windows and Sunroof: Re-initialize the one-touch feature by holding the switch to fully open, then fully close each window and the sunroof.
- Transmission: The transmission's adaptive learning will reset. Your car's shift patterns may feel different for a few days as it relearns your driving style.
- Warning Lights: Some lights (like tire pressure) may appear but should clear after a short drive. If they persist, it may require further diagnostics.
DIY vs. Professional Help
Should you replace the battery yourself or call a professional? While the physical swap is possible for a DIYer, there are key risks and challenges. AGM batteries are heavy (40-60 lbs), and a mistake like a short circuit can damage your BMW's sensitive electronics. The biggest hurdle is battery registration. This requires a specialized diagnostic tool that most DIYers don't own. Without proper registration, your new, expensive AGM battery will not last, negating any initial savings.
Choosing a professional service like Autowerkes offers significant advantages. Our certified technicians are experts in BMW electrical systems. We have the correct diagnostic tools to perform the registration accurately, ensuring your new battery integrates perfectly with the vehicle's charging system for maximum lifespan. We also handle the proper, environmentally-safe disposal of your old battery and can inspect the charging system for any underlying issues.
When you factor in the cost of tools and the risk of premature battery failure or electrical damage, professional service is often the most cost-effective and reliable choice. At Autowerkes, we serve luxury vehicle owners across Huntington Beach, Newport Beach, and surrounding areas. We have the expertise to get the job done right the first time.
